My Vetter-esk Streamliner (a work in progress)

JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
Hi streamliner fans. I am building a partial streamliner to ride in the Vetter Challenge this Fall at Wendover, Utah.

My mentors have been Craig Vetter, Alan Smith, and Vic Valdez. Thank you gentlemen for much sage advice.

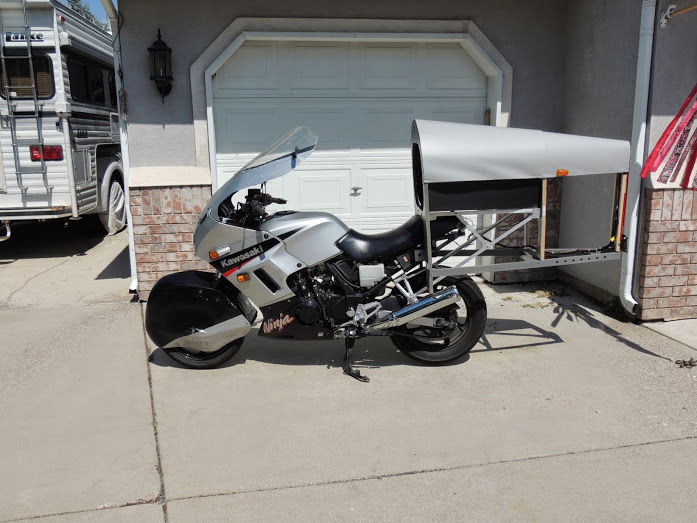

Here is the bike in its current state. The front wheel fairing and aero-windscreen were aquired from Alan (thanks). Of course, the boat tail is my own creation and is my first attempt. I plan to add fiber glassed pink foam to the front of the main bulkhead to smooth out the air between it and I. Also, the underside of the tail will acquire a lower section also constructed of glassed pink foam. Prior to that I plan on finishing the tail structure off with electrics, cargo floor (Yes Craig it will hold 4 shopping bags ;)), and skinning.

Comments are welcome.

Cheers,

Jeff





The tail is tied to the motorcycle frame in six locations. It is quite strong, I am able to lift the back of the bike up or push it down and compress the suspension. I believe that the entire tail, as is, weighs around 20+ pounds ( I still need to weigh it).


Last edited:
  • Like
Reactions: Epic Trekker

brianinpa

Five Star Vetteral
Joined
Oct 20, 2013
Messages
1,331
Reaction score
476
Points
83
Age
53
Location
Lebanon, PA
Nice design. Curious about the pink foam. Any reason you are using the foam instead of just fiberglass mat?


JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
Pink Foam construction covered with glass can be used to make some very interesting things. Actually, I'd like to try and build a fairing using this method (glassed foam shell or lost foam construction). Here is an example of what can be accomplished:

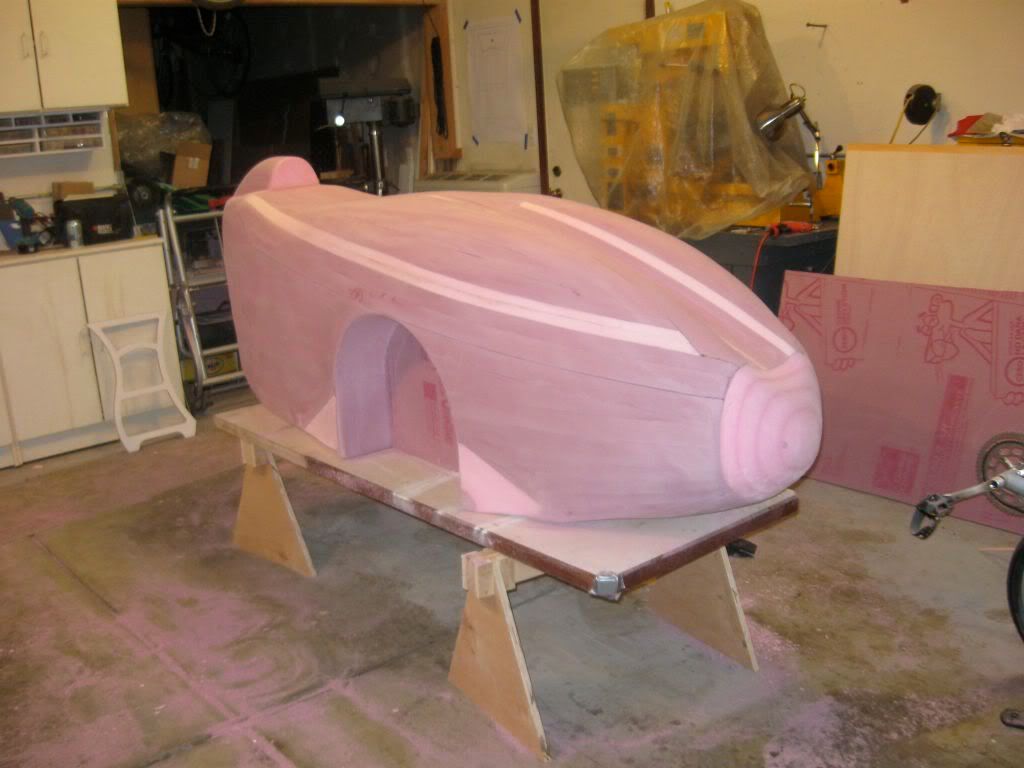

Electric Assist Velomobile using pink foam construction. http://www.recumbents.com/forums/pop_printer_friendly.asp?TOPIC_ID=2510



Last edited:
  • Like
Reactions: AVetterXS

JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
Yesterday I took off all the aero mods and put the bike back to stock. This is a good thing because it means I can now finish the tail off the bike and go riding :D. Updates to follow.


brianinpa

Five Star Vetteral
Joined
Oct 20, 2013
Messages
1,331
Reaction score
476
Points
83
Age
53
Location
Lebanon, PA
All work and no play is very boring! That's why I have two bikes! One is in pieces and the other can be enjoyed.

  • Like
Reactions: Epic Trekker

JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
Lol Brian. So true.

Jeff


Craig Vetter

Vetter Founder
Joined
Oct 11, 2013
Messages
65
Reaction score
35
Points
18
Age
77
Location
Carmel, CA
Website
www.craigvetter.com
It is like we are witnessing a living Time Capsule in fairing design. The banner is my 1966 design. Here we are almost 50 years later. Now we have more of a "Open Source" thing happening. I don't have to do it all.

How exciting. So much more to do.


JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
Some more progress - tail lights and turn signals wired-up. Getting ready for the Wendover ride.

  • Like
Reactions: AVetterXS

JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
Ok Brian, ask and you shall receive:

The top skins are on temporarily for fit hence the wrinkles. Need to add the sides, change the gearing (15/39 waiting for a master link), tidy up some details then go for a ride :D

I will worry about making it pretty later.







brianinpa

Five Star Vetteral
Joined
Oct 20, 2013
Messages
1,331
Reaction score
476
Points
83
Age
53
Location
Lebanon, PA
That looks promising! I started discussing this with my dad about his Helix and he seemed interested.

I may be turning ahead a few pages, but I was never one to read along...

How will you access the "luggage compartment" and are thinking of covering the lower part of the tail from the mufflers to the license plate: not much to mount to at the bike, so that is why I am wondering.


JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
What year Ninja is that Jeff? Also, what is your targeted MPG? I am a bit green on the streamlining topic, however eager to learn more.
2005. I would be happy to get anything over 80 mpg with regular riding, not hypermiling.


JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
That looks promising! I started discussing this with my dad about his Helix and he seemed interested.

I may be turning ahead a few pages, but I was never one to read along...

How will you access the "luggage compartment" and are thinking of covering the lower part of the tail from the mufflers to the license plate: not much to mount to at the bike, so that is why I am wondering.
Thanks. The luggage area is accessed thru the main bulkhead, behind the seat.

The lower tail has been somewhat a head-scratcher for me. Ideally, I'd like to have a removable fairing that would facilitate fixing a flat if needed.

The problem is to create something that will not scoop a bunch of air aft of the rear tire and being simple to build. I still have a bunch of coroplast so I may take a crack at building the lower area with that. Also, I need to consider how low it can be without hitting the ground getting out of steep driveways and such.

The bottom of the tail, as it is, will be covered and not left open. How aero it will be will have to wait as I am trying to get the bike ready for Craig's Wendover Challenge.

Last edited:

JeffM

Grasshopper
Joined
Apr 12, 2014
Messages
12
Reaction score
6
Points
3
Age
62
Alan Smith stopped by this morning, with riding buddy Dave, to see how my build was coming along. He was on his way to the Craig's Fuel Challenge at the AMA Vintage Days, Mansfield, Ohio .

Thanks for the advice Alan.

Our bikes:


Alan, in the red shirt, with his streamliner and Dave with his Vstrom 650.

Last edited:
